When specifying HVAC pipe insulation, thermal conductivity (λ value) is often the first metric considered. While it is essential, focusing on λ value alone can lead to missed opportunities for better performance, compliance, and long term reliability. For example, two insulation products made from the same material, with identical thickness and diameter, can perform very differently in practice due to their internal structure and long term stability.
In HVAC systems, technical insulation plays a critical role in reducing heat loss, improving energy efficiency, and ensuring compliance with UK Building Regulations. For heating, cooling, ventilation, and domestic hot water pipework, insulation must meet minimum performance criteria under Part L, with insulation thickness requirements defined in BS 5422:2023. These requirements are directly influenced by the declared thermal conductivity of the insulation material, making accurate and consistent specification essential.

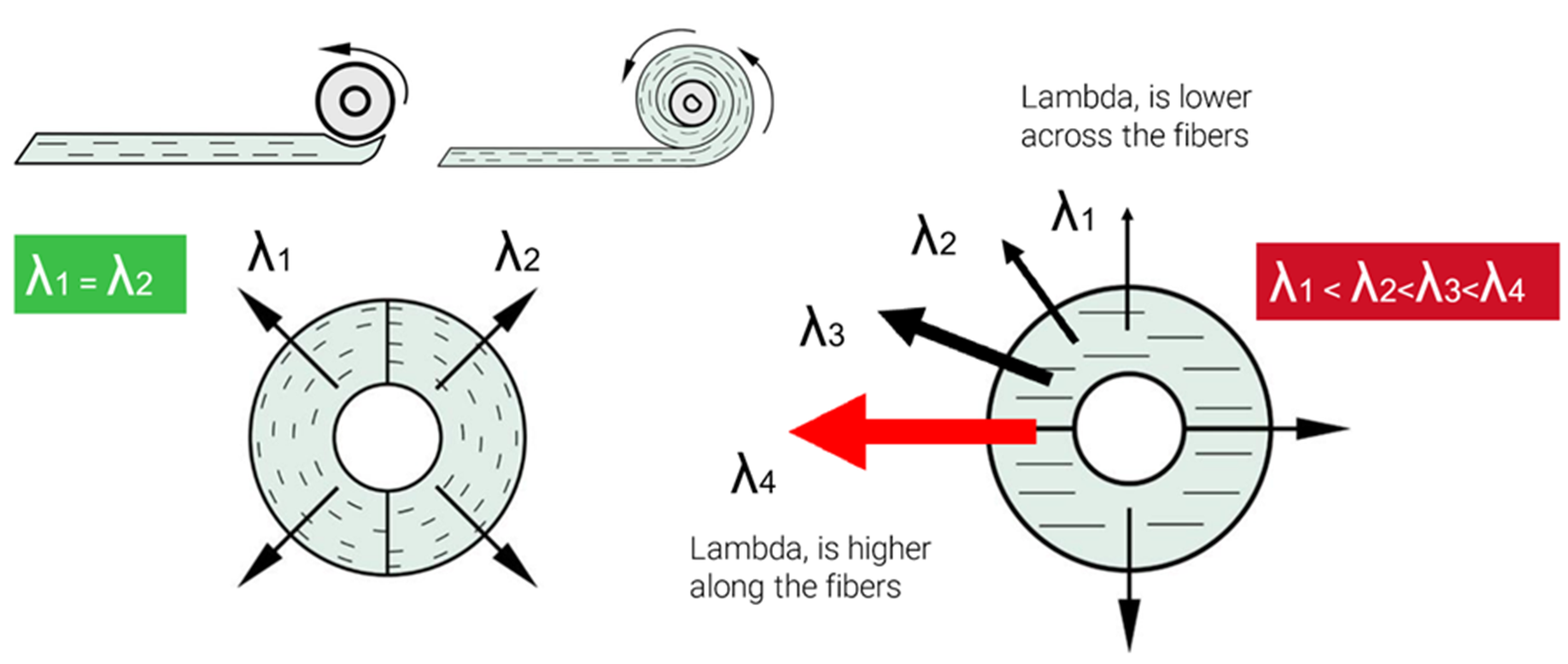

Thermal conductivity is not a fixed value, however. It changes with temperature and can be affected by the structure of the insulation, moisture exposure, and ageing. High quality stone wool pipe insulation is designed to maintain stable thermal performance over time thanks to its fibre structure and air filled porosity. This stability supports reliable energy efficiency throughout the lifespan of the HVAC system, not just at the point of installation.
Beyond energy performance, correctly specified technical insulation also contributes to fire safety, condensation control, and sustainability targets. Stone wool insulation solutions used in HVAC applications are non combustible or achieve high fire performance classifications, while also supporting environmental certification schemes such as BREEAM and LEED when supported by Environmental Product Declarations (EPDs).
Everything starts with specification
To help designers and specifiers move beyond assumptions and avoid common calculation errors, PAROC brings together design resources on the PAROC Technical insulation designer page. This dedicated hub provides access to calculation tools, specification guides, installation guidance, and product documentation—all in one place.
A key tool available is PAROC Calculus, a technical insulation calculation program that supports accurate dimensioning of insulation for HVAC and process applications. Based on ISO 12241, it enables calculations for heat loss, surface temperature, and temperature drop across pipes and ductwork, supporting compliant and efficient system design.
In addition, PAROC recently launched an HVAC product specification guide, which sits alongside its thickness guidance to help ensure alignment with BS 5422 requirements, reducing the risk of costly design inconsistencies and on site corrections. By combining robust product performance with reliable design tools, specifiers can make informed decisions from the earliest project stages.
Take a look at PAROC on NBS Source.
